Filament Winding Machines
Innovative Winding Solutions
Filament Winding Machines
TFC offers a comprehensive range of filament winding machines designed to meet the needs of various industries. Our machines utilize the latest technology to create high-performance composite structures through precise filament winding processes.
Key Filament Winding Machines:
Standard Filament Winding Machines: TFC provides multi-axis, multi-spindle filament winding machines known for their rigid construction and customization options. These machines cater to diverse requirements and include:

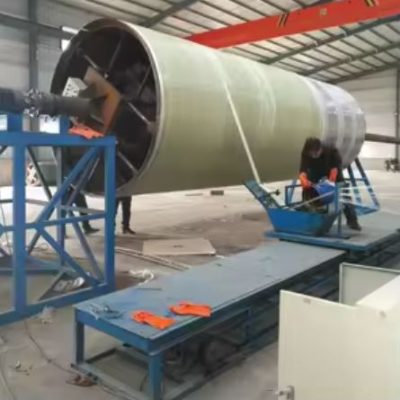

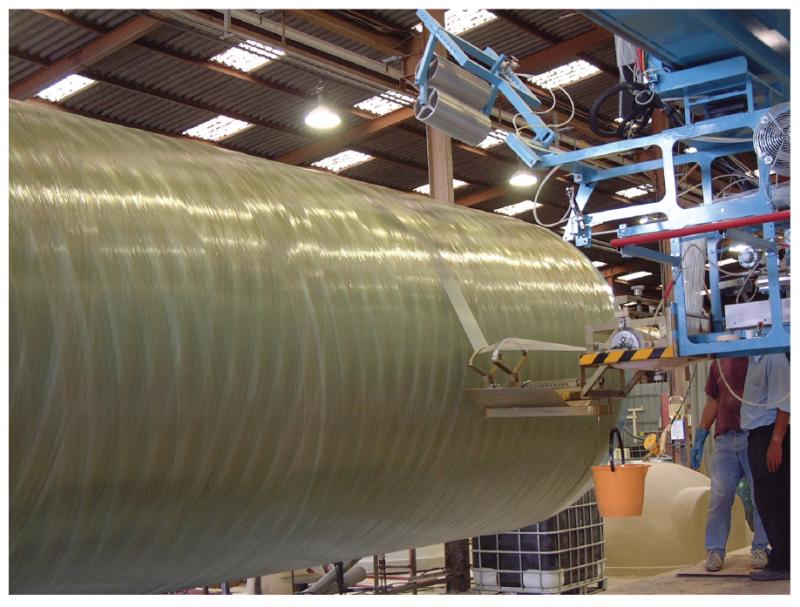

- 2 Axis Pipe Winder: Ideal for producing pipes of all sizes up to ⌀6000mm.
- 2 Axis Multiple Spindle Winder: Suitable for small tubes under ⌀400mm, offering higher productivity.

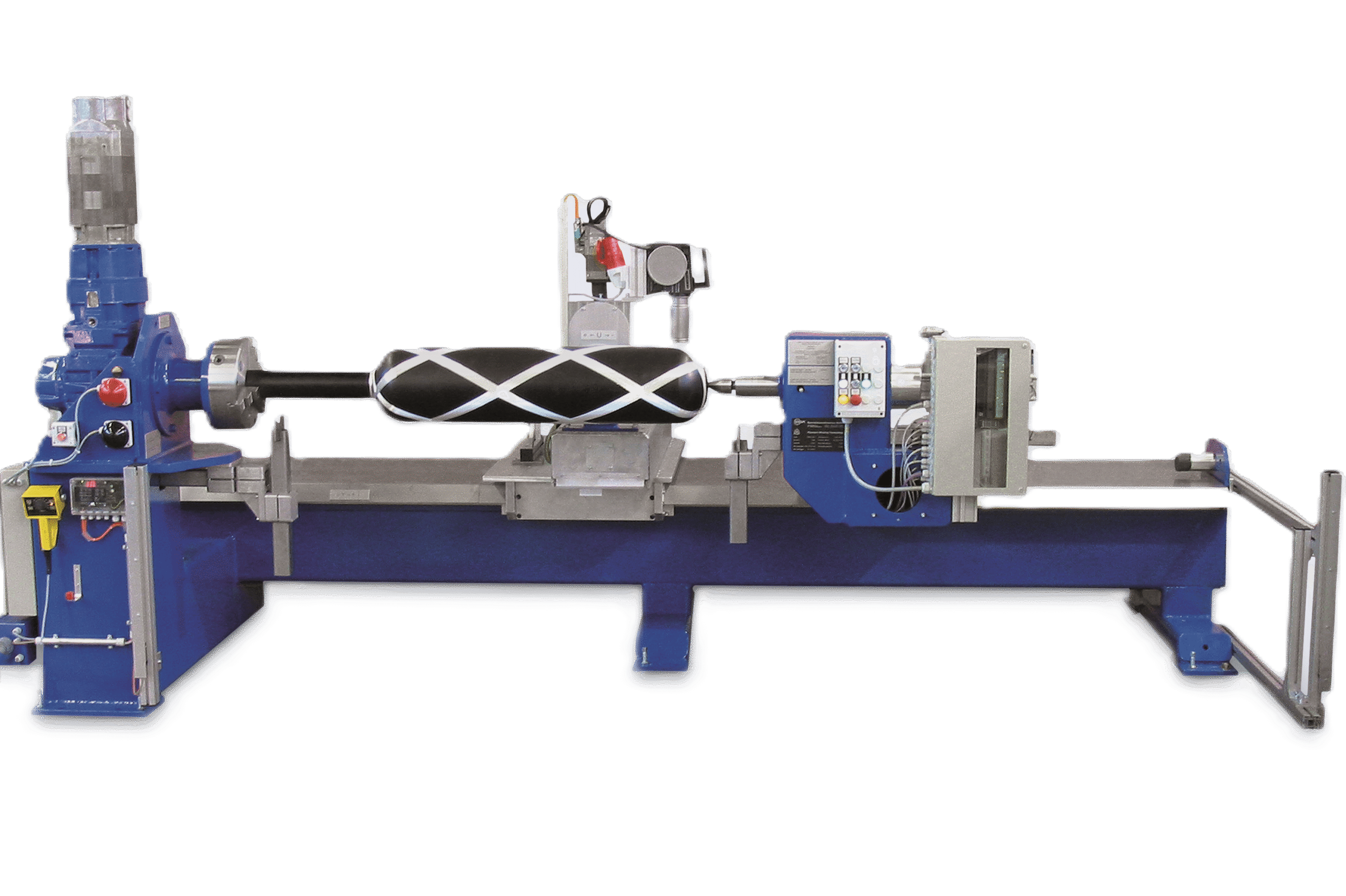

- 4 Axis Bottle/Tank Winder: Versatile machine for general-purpose winding.
- 4 Axis Multiple Spindle Winder: Designed for small bottles and tubes with increased productivity.
- 6 Axis Winder: Perfect for aerospace, R&D, tape winding, and special applications.
Accessories: TFC offers a complete turn-key solution for filament winding, including essential accessories such as:
- Resin Bath Systems
- CNC Controls
- Hydraulic Mandrel Extractors
- Hydro Testers
- Steel Mandrels
- Mandrel Rotators
- Curing Stations
- Sand Filling Stations
- Creel Stands
- Fibre Tension Systems
Lab Scale Machines: Ideal for educational institutions, universities, and R&D organizations, TFC’s lab scale filament winding machines offer:
- Diameter Range: From 200 to 500 mm
- Length Sizes: From 1 to 4 meters
- CNC Control Options: From 2 to 4 axes
Why Choose TFC’s Filament Winding Machines?
Precision Engineering: Our machines offer high precision in filament placement, ensuring the production of high-quality composite structures with optimal mechanical properties.
Customizability: TFC’s machines can be customized to meet specific requirements, whether for large-scale production or specialized applications.
Advanced Technology: Featuring the latest technology, our machines are designed for efficiency and reliability in various filament winding processes.
Versatility: Suitable for a wide range of applications, from automotive and aerospace to industrial and research purposes.
Complete Solutions: We provide a full range of accessories and support equipment to complement our filament winding machines, offering a comprehensive solution for your needs.
Educational and R&D Focused: Our lab scale machines are tailored for academic and research environments, supporting the development of new composite materials and processes.
Applications:
Pipes and Tubes: Suitable for manufacturing pipes, pipe joints, and tubes with high strength and durability.
Pressure Vessels: Ideal for creating pressure vessels and storage tanks that require high-performance composite materials.
Structural Components: Used in the production of structural components for various industries, including aerospace and automotive.
Educational and Research: Supporting educational institutions and research facilities in developing and testing new filament winding techniques and composite materials.
Related Products for Filament Winding:
TFC provides a full range of related equipment to complement our Filament Winding Machines, ensuring seamless production and post-processing of composite components:
FWM Hydra Tester:
The FWM Hydra Tester is a crucial testing unit designed to verify the integrity and durability of filament-wound components. It provides precise hydraulic pressure testing to ensure that composite pipes, tanks, and other products meet performance standards under high-pressure conditions.FWM Pipe Extractor:

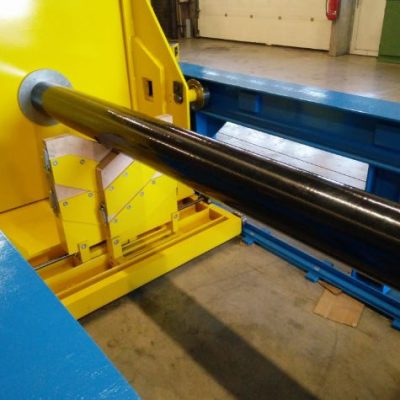

TFC’s FWM Pipe Extractor simplifies the removal of pipes or cylindrical products from the mandrel post-winding. This machine ensures that the extraction process is smooth, reducing the risk of damaging the product during removal.FWM Auxiliary Equipments:
TFC offers a wide range of auxiliary equipment to support filament winding operations, including curing ovens, mandrel handling systems, resin impregnation units, and fiber delivery systems. These machines ensure an efficient, streamlined production process and high-quality end products.
